Accessories
Standard	Optional
1. Fully enclosed guard	1. Chip remover device
2. Auto lubrication system	2. Coolant through spindle(CTS)
3. Pneumatic tool exchange arrangement	3. Oil-Water separator
4. Blowing device	4. Pls inquire for more
5. Coollig arrangement/Lighting arrangement
6. 3 color light
7. Adjusting pad block
8. Spindle coolant arrangement
9. Air conditioner for electric cabinet
10. Tool, Toolbox
11. Technicaldocument
12. Tools Kit

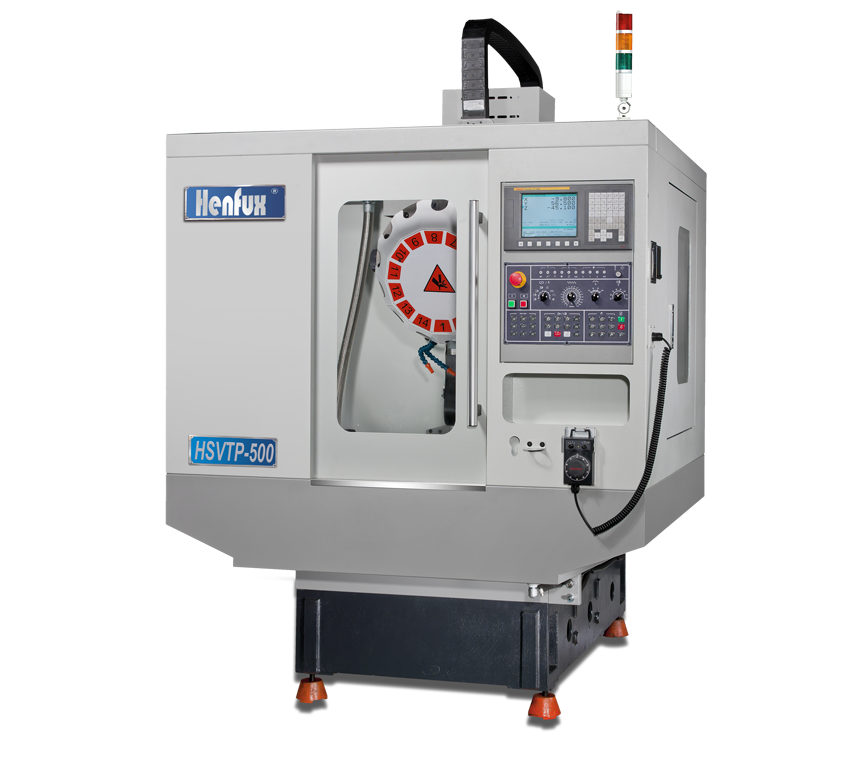

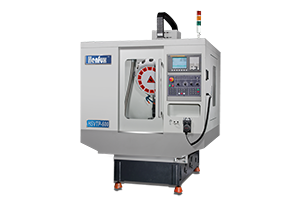

Parameters	HSVTP-500
Worktable
Working table size	600X360mm
T slots	18X3X100mm
Max.table load	200kg
Travel
X axis travel	510mm
Y axis travel	350mm
Z axis travel	300mm
Spindle nose to table surface	130-430mm
Spindle center to column	450mm
Spindle
Transimmision	Belt type
Spindle speed	10000 R.P.M
Spindle motor	3.7/5.5kw
X-Y-Z motor output(Fanuc)	1.2/1.2/1.8kw
X-Y-Z motor output(Mitsubishi)	1.5/1.5/2.0kw
Feed system
Rapid feed	48000/48000/48000m/min
Max.cutting feed rate	10000m/min
Controller
Controller brand/Model	Mitsubishi70B(STD)
Controller brand/Model	Mitsubishi70A(OPT)
ATC type
Tool holder	BT-30
Tool No.	14 pcs
Max. tool length	200mm
Max. tool weight	3kg
Tool to tool time	1.8(14T)sec
Capacity
Air pressure requirement	6kgf/m2
Floor occupation	1950X2000mm
Machine weights	2100kg

Parameters

HSVTP-500

Worktable

Working table size

600X360mm

T slots

18X3X100mm

Max.table load

200kg

Travel

X axis travel

510mm

Y axis travel

350mm

Z axis travel

300mm

Spindle nose to table surface

130-430mm

Spindle center to column

450mm

Spindle

Transimmision

Belt type

Spindle speed

10000 R.P.M

Spindle motor

3.7/5.5kw

X-Y-Z motor output(Fanuc)

1.2/1.2/1.8kw

X-Y-Z motor output(Mitsubishi)

1.5/1.5/2.0kw

Feed system

Rapid feed

48000/48000/48000m/min

Max.cutting feed rate

10000m/min

Controller

Controller brand/Model

Mitsubishi70B(STD)

Controller brand/Model

Mitsubishi70A(OPT)

ATC type

Tool holder

BT-30

Tool No.

14 pcs

Max. tool length

200mm

Max. tool weight

3kg

Tool to tool time

1.8(14T)sec

Capacity

Air pressure requirement

6kgf/m2

Floor occupation

1950X2000mm

Machine weights

2100kg

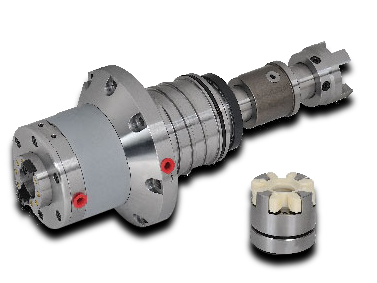

High Speed, High precision spindle.

-High speed spindle direct driving transmission

-Max.spindle speed : 12000rpm(STD.)-20000rpm(OPT.)

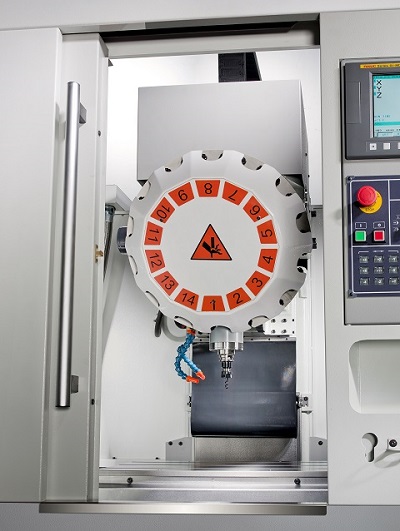

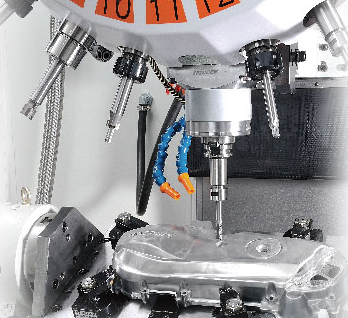

High-speed ATC

-Turret type ATC featured with indexing mechanism
-Turret type ATC provides 14T(standard)&16T/21T(option)
-Fast tool changing time 1.8 sec.(T to T)

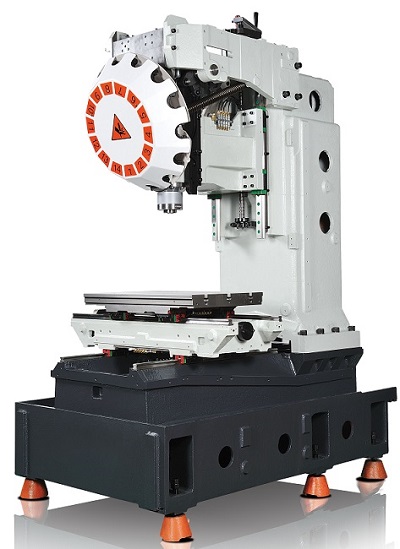

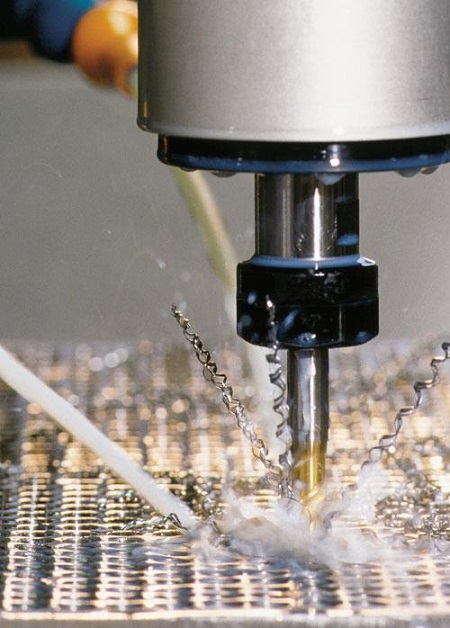

High rigidity struture design

Provides the strong enough reliability to fulfiu high speed drilling tapping & milling works.

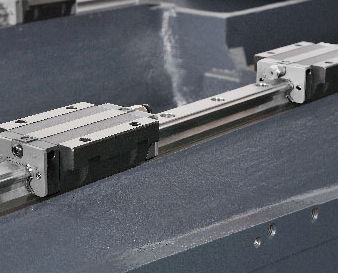

3 axis guideway

X.Y,Z axis lead screw are use thermal deformation design, which could make sure the repeated positioning accuracy and the stability under movement.
3 axis linear rolling guide ways could make the worktable to plying-up with the guideways, with high speed and good stabilize performace, the movement speed could reach 48/64 m/min

Wide internal space design

With the wide internal space design for configura the 4th axis worktable and suitable for big workpiece`s operation.
